Zebra label printers are known for their high quality and reliability, making them a popular choice for many businesses. However, these printers can be quite expensive, so users often expect them to last for many years. One common issue over time is the print head wearing out or getting damaged after long-term use. When this happens, the printer may stop working properly. But this doesn’t mean you need to buy a new printer. In many cases, simply replacing the print head can bring the machine back to life. In this article, we’ll walk you through everything you need to know about replacing a Zebra printer print head.
A Zebra printer is a special type of printer used to make labels, barcodes, receipts, and wristbands. It is made by Zebra Technologies, a well-known brand in the printing industry. These printers are often used in warehouses, shops, hospitals, factories, and by online sellers.
Zebra printers are fast, reliable, and built to handle large amounts of printing. They use thermal printing, which means they don’t need ink or toner like regular printers. There are two main types:
Direct Thermal – This type prints by applying heat directly to special paper. It’s good for short-term labels like shipping labels, but the print can fade over time.
Thermal Transfer – This type uses a ribbon to transfer ink onto the label. It creates stronger, longer-lasting prints.
Zebra offers many printer models. Some are small for office desks, while others are big and strong for factories. There are even mobile Zebra printers that can be carried around.
Zebra printers also work well with computers and business systems. They are trusted by many companies because they print clearly, quickly, and without many problems
How to Maintain a Zebra Printer
To keep your Zebra printer working well, it’s important to take care of it regularly. Good maintenance helps avoid printing problems and makes the printer last longer.
First, always keep the printer clean. Dust and label residue can build up inside the printer and on the print head. Use a soft cloth or special cleaning pen to gently clean the print head. You can also use isopropyl alcohol wipes to clean the rollers and inside parts. It’s best to clean the printer every time you change the label roll or ribbon.
Second, check the labels and ribbons you use. Make sure they are high quality and made for your type of Zebra printer. Low-quality materials can cause jams, poor print quality, or damage the print head.
Third, make sure the printer is in a clean, dry place. Keep it away from heat, direct sunlight, and moisture. If dust is common in your work area, cover the printer when it’s not in use.
Lastly, update your printer’s software if needed and check for any error messages. Following the user manual and doing regular checks will help you avoid most issues.
How to Tell If the Print Head Needs to Be Replaced
The print head is one of the most important parts of a Zebra printer. It heats up to create text and images on your labels. Over time, the print head can wear out, especially if you use the printer often. Knowing when to replace it can help you avoid printing problems.
Here are some signs that the print head may need to be replaced:
1 Poor print quality. If your labels look faded, have missing lines, or the barcode doesn’t scan, it could mean the print head is worn or dirty.
2 Lines or gaps in the print. If there are white lines running through the text or barcode, part of the print head may be damaged.
3 Frequent errors or jams. A damaged print head can affect how labels feed through the printer.
4 Cleaning doesn’t help. If you clean the print head and the problem is still there, replacement may be the only solution.
In general, print heads last for millions of inches of printing. But heavy use, dirty work areas, or low-quality labels can shorten their life. If you’re not sure, ask your supplier or check the printer’s manual.

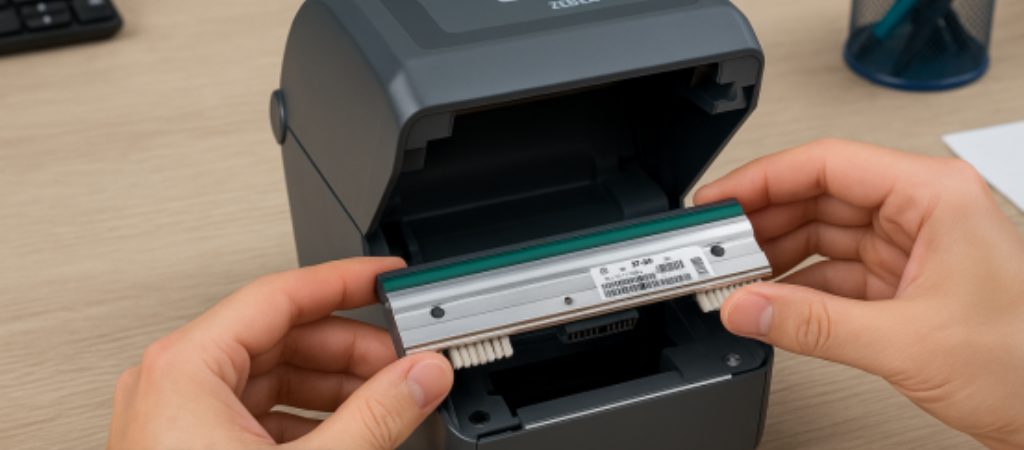

How to Replace the Print Head
Before you begin, make sure the printer is turned off and unplugged. The print head gets very hot during use. To avoid injury or damage, never touch it with your fingers. Only use a cleaning pen for maintenance. Also, protect your work area from static electricity. If possible, use a static-safe mat and wear a grounded wrist strap. You can buy a printhead on Zebra website.
1 Open the printer by pulling the latches forward and lifting the top cover.
2 If there is a ribbon inside the printer, remove it.
3 Use a small flat screwdriver to remove the ribbon guide. First, gently pry the tab on the right side, then pull out the left side.
4 Locate the round opening on the ribbon frame. Use a blunt-tipped tool (about 2.5–3.8 mm wide) to press the print head release tab—first on the right, then on the left. This will unlock the print head.
5 Carefully pull the two cable connectors from the print head.
6 Gently remove the green ground wire as well.
To install the new print head:
1 Connect the left-side wire connector to the new print head. It only fits one way.
2 Connect the green ground wire to the print head.
3 Connect the right-side wire connector.
4 Insert the print head tab into the slot of the ribbon frame. Align the spring slots with the posts, then press the print head into place until it snaps in.
5 Reinstall the ribbon guide. Start with the left side, then swing the right side into place until it clicks.
6 Gently press down on the print head to make sure it moves freely and locks into position when released.
7 Use a clean pen to wipe the print head, removing any dust or fingerprints. Clean from the center to the outer edges.
8 Reload the labels and ribbon. Plug the printer back in, turn on the power, and print a test label to check that everything works properly.
Conclusion
Zebra printers are reliable tools for printing labels, but like any machine, they need regular care. The print head is a key part of the printer, and knowing how to maintain and replace it can save time and money. If you notice faded prints or lines on your labels, don’t ignore the signs. With proper cleaning and timely replacement, your Zebra printer will keep running smoothly and help your business stay efficient.
